Zhejiang Xinna Medical Device Technology Co., Ltd.

1.2 micron IV Filter for infusion therapy

商品の詳細:
起源の場所: 中国
ブランド名: OEM avaliable
証明: YY 0286.1 GB 8368-2018 ISO9001
モデル番号: F33 について
お支払配送条件:
最小注文数量: 100,000pcs
価格: $0.15-$0.22 per piece
パッケージの詳細: 750個/ラベル,4個/カートン
受渡し時間: 30日
支払条件: L/C,T/T
  • 詳細情報
  • 製品の説明

詳細情報

製品名: 使い捨ての1.2ミクロンIVフィルター フィルター ハウジング: ABS
毛穴の大きさ: 1.2um 中型材料: 換気孔用PTFE
液体の高さ停止: ≥1.5メートル アセンブリ モード: 熱溶融または超音波溶接
滅菌: 不滅菌/EOS タイプ: F,使い捨て用
利点: 自動液体停止 色: 自然光、遮光対応
互換性: 標準のIV管と互換性がある 保証: 3 年
適用する: インフュージョンセット 原産国: 中国
ハイライト:

1.2 micron

,

iv filter 1.2μm

,

infusion set

製品の説明

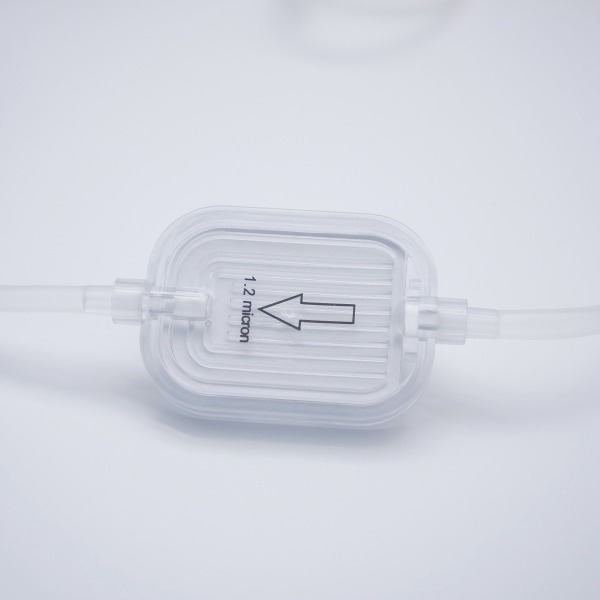

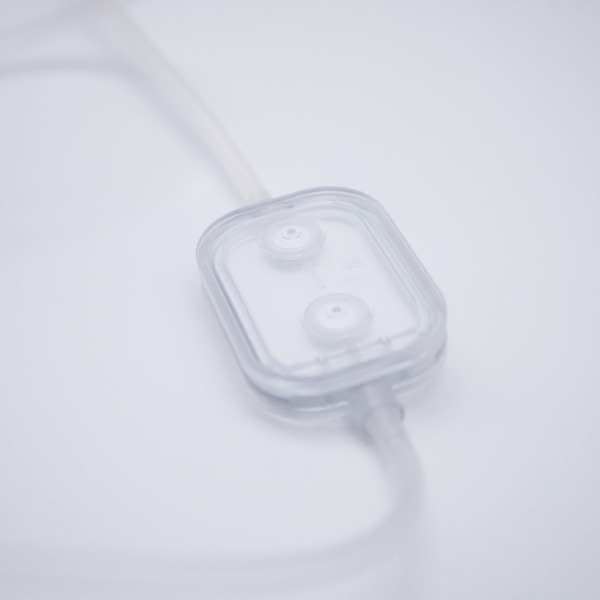

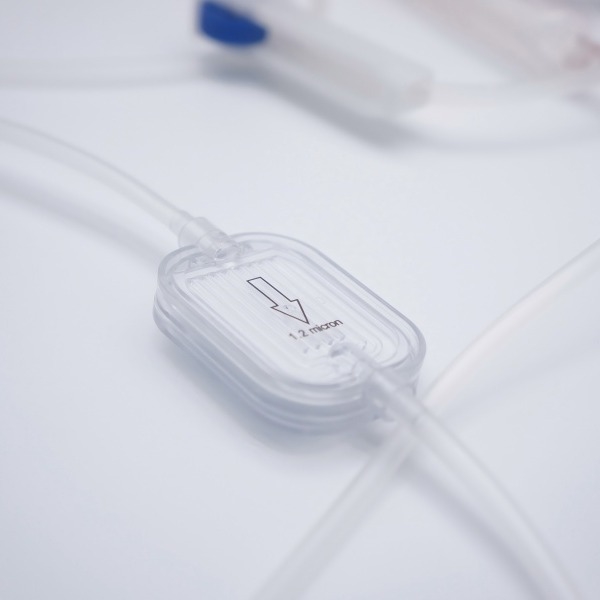

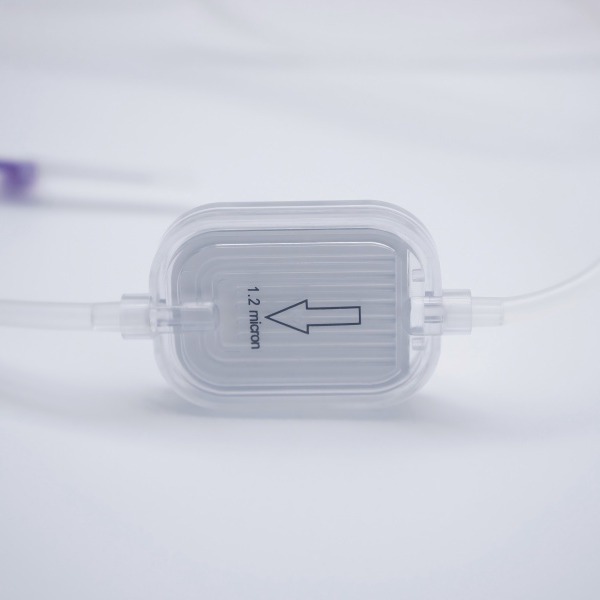

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.
